Password Edit Widget

Definition

The Password Edit Widget allows the user to update his/her password from the user portal.



The widget can also be used for password initialization (in which case the old password is not required).

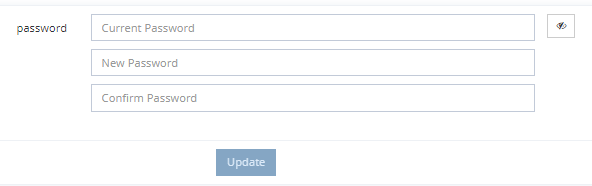

This Widget displays a set of form entries used for completion:

  • the old password (optional)

  • the new password

  • a confirmation of the new password (optional)

Tips

To access the Password Edit Widget, you must configure the Widget on a feature with an object kind set to IDENTITY and the operation needs the type set to CHANGE_PASSWORD.

For an optimal use of this Widget, prefer to configure it in a dedicated feature (of type UI_FOR_OBJECT or UPDATE) or in a Widget To Open (avoid search Feature).

The following configuration can be added in a Text Input Edit Widget to return the same display.

Configuration

Properties

Property name

Type

Mandatory

Description

Values (default value in bold)

displayClearTextBox

Boolean

NO

Used to define to display or not the password in visible text.

true, false

displayStrengthIndicator

Boolean

NO

Used to define to display or not the strength indicator below the password field.

true, false

requiresConfirmationPassword

Boolean

NO

Used to define if the confirmation of the new password is required or not.

true, false

requiresOldPassword

Boolean

NO

Used to define if the old password is required or not.

true, false

style

String

NO

Used to define the style of the widget.

MODAL, INLINE

Example

Code Password Edit

Code Text Input Edit Widget


<widget id="password" xsi:type="ctdbum:AttributeEditorWidgetType">
	<hidden>false</hidden>
    <config>
    	<editor>
        	<editWidget xsi:type="ctdbum:PasswordEditWidgetType">
            	<hidden>false</hidden>
                <config>
                    <displayClearTextBox>true</displayClearTextBox>
					<displayStrengthIndicator>true</displayStrengthIndicator>
					<requiresConfirmationPassword>true</requiresConfirmationPassword>
					<requiresOldPassword>true</requiresOldPassword>
					<style>MODAL</style>
				</config>
			</editWidget>
		</editor>
		<label></label>
		<lockedInUi>false</lockedInUi>
		<mode>READ_WRITE</mode>
		<multiValued>false</multiValued>
		<override>true</override>
	</config>
	<attributeId>password</attributeId>
</widget>

<widget id="password" xsi:type="ctdbum:AttributeEditorWidgetType">
	<hidden>false</hidden>
    <config>
    	<editor>
        	<editWidget xsi:type="ctdbum:TextInputEditWidgetType">
            	<hidden>false</hidden>
                <config>
                    <displayClearTextBox>true</displayClearTextBox>
					<displayStrengthIndicator>true</displayStrengthIndicator>
					<requiresConfirmationPassword>true</requiresConfirmationPassword>
					<requiresOldPassword>true</requiresOldPassword>
					<style>MODAL</style>
				</config>
			</editWidget>
		</editor>
		<label></label>
		<lockedInUi>false</lockedInUi>
		<mode>READ_WRITE</mode>
		<multiValued>false</multiValued>
		<override>true</override>
	</config>
	<attributeId>password</attributeId>
</widget>
