MFA Device Enrollment Widget

Definition

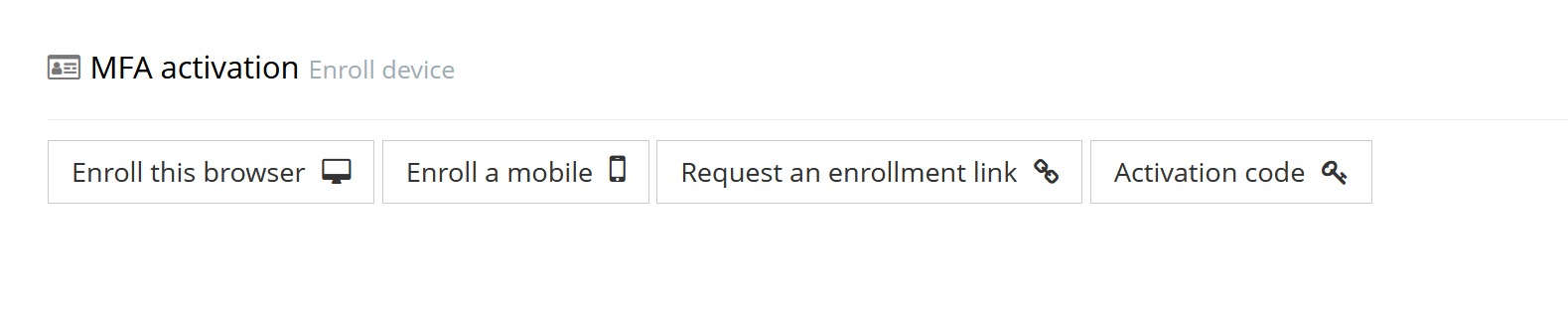

This widget displays a set of buttons that allows to:

  • enroll a new Device immediately

  • send a device Enrollment Link by email



Configuration

Properties

Properties name

Type

Mandatory

Description

Values (default value in bold)

design

myMFADesign

NO

Options to display the myMfa iframe.

-

allowImmediateEnrollment

Boolean

NO

Indicates whether or not devices can be immediately enrolled.

true, false

allowDisplayActivationCode

Boolean

NO

Allows to display Activation Code. Often uses in cases of M_ACCESS browserEnrollmentMethod

true, false

immediateEnrollmentOptions

MyMFADeviceEnrollmentOptions

NO

Options for immediate enrollment.


allowEnrollmentLink

Boolean

NO

Indicates whether or not devices can be enrolled with an enrollment link.

true, false

enrollmentLinkOptions

MyMFADeviceEnrollmentLinkOptions

NO

Options for enrollment through a link.

-

Design properties

Properties name

Type

Mandatory

Description

Values (default value in bold)

bgColor

String

NO

Indicates the color of the Popup container background (CSS like hex, "red" rgb() etc.)

#999999

borderColor

String

NO

Indicates the color of the Popup external border (CSS like hex, "red" rgb() etc.)

#2D5F8B

displayStyle

Enum

NO

Indicates the type of display of the enrollment.

INLINE, MODAL

left

String

NO

Indicates the distance in % from the container left.

0

mainColor

String

NO

Indicates the popup main color.

#2D5F8B

rounded

Boolean

NO

Indicates if corners are rounded.

false, true

shaded

Boolean

NO

Indicates if the box is shaded.

false, true

skin

String

NO

Indicates the theme used for the window insides.

default, mobile

titleColor

String

NO

Indicates the color of the title.

#FFFFFF

titlebgColor

String

NO

Indicates the color of the title bar background.

#2D5F8B

top

String

NO

Indicates the distance in % from the container top.

0

withActionTitle

Boolean

NO

Indicates if the title inside the popup will be shown.

This title is closely related to the action currently processed in the popup (authentication, activation…)

false, true

withBorder

Boolean

NO

Indicates if the popup external border is removed, along with the background color of the container.

false, true

withLogo

Boolean

NO

Indicates if the myMFA logo is displayed.

false, true

withTitle

Boolean

NO

Indicates if the title inside the popup will be shown.

false, true

immediateEnrollmentOptions properties

Properties name

Type

Mandatory

Description

Values (default value in bold)

deviceTypes

-

NO

Device type

-

browserEnrollmentMethod

Enum

NO

The method used to enroll a browser.

EMBEDDED, MY
deviceTypes properties

Properties name

Type

Mandatory

Description

Values (default value in bold)

deviceType

Enum

NO

Two types of devices are available to be enrolled immediately.

BROWSER, MOBILE

enrollmentLinkOptions properties

Properties name

Type

Mandatory

Description

Values (default value in bold)

mode

Enum

NO

Two modes of device enrollment are available through a link.

UNIQUE, DEVICE

deviceEnrollmentLinkIntent

String

NO

Identifier of the Self-Service feature to enroll a device. By default this will provide the choice between mobile and browser.

Used when mode is UNIQUE.

my_mfa_enroll

deviceEnrollmentLinkIntentBrowser

String

NO

Identifier of the Self-Service feature to enroll a Browser device.

Used when mode is DEVICE and BROWSER is selected.

my_mfa_enroll_browser

deviceEnrollmentLinkIntentMobile

String

NO

Identifier of the Self-Service feature to enroll a Mobile device.

Used when mode is DEVICE and MOBILE is selected.

my_mfa_enroll_mobile

deviceEnrollmentLinkUseCount

Int

NO

Number of times the enrolment link can be accessed (during the validity period).

1

displayDeviceEnrollmentLink

Boolean

NO

Indicates whether or not the enrollment link shall be displayed on screen.

true, false

sendDeviceEnrollmentLink

Boolean

NO

Indicates whether or not the enrollment link shall be sent by notification.

true, false

sendDeviceEnrollmentLinkEmailOverride

Boolean

NO

Authorizes to override the destination email address when sending the device enroll link by email.

true, false

actions

Actions

NO

Allows to define actions (notification sending, script execution...) that will be performed when the feature is submitted.

In the case of a rule exection, it must be of MYMFA category.

-

Example

Example
XML
<widget id="my-mfa-device-enrollment-widget" xsi:type="ctdbum:MyMFADeviceEnrollmentWidgetType">
	<hidden>false</hidden>
    <config>
        <bordered>false</bordered>
        <title>true</title>
        <mobileAppType>MEMORITY_APP</mobileAppType>
        <design>
            <bgColor>#999999</bgColor>
            <borderColor>#2D5F8B</borderColor>
            <displayStyle>INLINE</displayStyle>
            <left>0</left>
            <mainColor>#2D5F8B</mainColor>
            <rounded>false</rounded>
            <shaded>false</shaded>
            <skin>default</skin>
            <titleColor>#FFFFFF</titleColor>
            <titlebgColor>#2D5F8B</titlebgColor>
            <top>0</top>
            <withActionTitle>true</withActionTitle>
            <withBorder>false</withBorder>
            <withLogo>false</withLogo>
            <withTitle>false</withTitle>
		</design>
        <allowImmediateEnrollment>false</allowImmediateEnrollment>
        <allowDisplayActivationCode>false</allowDisplayActivationCode>
        <immediateEnrollmentOptions>
          <deviceTypes>
            <deviceType>BROWSER</deviceType>
            <deviceType>MOBILE</deviceType>
          </deviceTypes>
          <browserEnrollmentMethod>EMBEDDED</browserEnrollmentMethod>
        </immediateEnrollmentOptions>
        <allowEnrollmentLink>true</allowEnrollmentLink>
        <enrollmentLinkOptions>
          <mode>UNIQUE</mode>
          <deviceTypes />
          <deviceEnrollmentLinkIntent>identity-common-public-myMFAEnroll</deviceEnrollmentLinkIntent>
          <deviceEnrollmentLinkIntentBrowser>myMFA-enroll-browser</deviceEnrollmentLinkIntentBrowser>
          <deviceEnrollmentLinkIntentMobile>myMFA-enroll-mobile</deviceEnrollmentLinkIntentMobile>
          <deviceEnrollmentLinkUseCount>1</deviceEnrollmentLinkUseCount>
          <displayDeviceEnrollmentLink>false</displayDeviceEnrollmentLink>
          <sendDeviceEnrollmentLink>true</sendDeviceEnrollmentLink>
          <sendDeviceEnrollmentLinkEmailOverride>false</sendDeviceEnrollmentLinkEmailOverride>
          <actions>
            <action class="actionNotification">
              <config xsi:type="ctdrule:CitadelNotificationConfigurationType">
                <notifications>AIW1-common-enrollment-emailDefinition</notifications>
              </config>
            </action>
          </actions>
        </enrollmentLinkOptions>
	</config>
</widget>
