Raw Update

Definition

A Raw Update feature is used to perform modifications on all attributes on objects (built-in and related to object).

For this type of Feature, all the attributes concerned by the object are displayed and it is possible to perform update on them.

The attributes are sorted in alphabetical order according to the translation of the attribute name and they are displayed according to the characteristics of the Attribute editor.



Usage

Steps

Preview

1

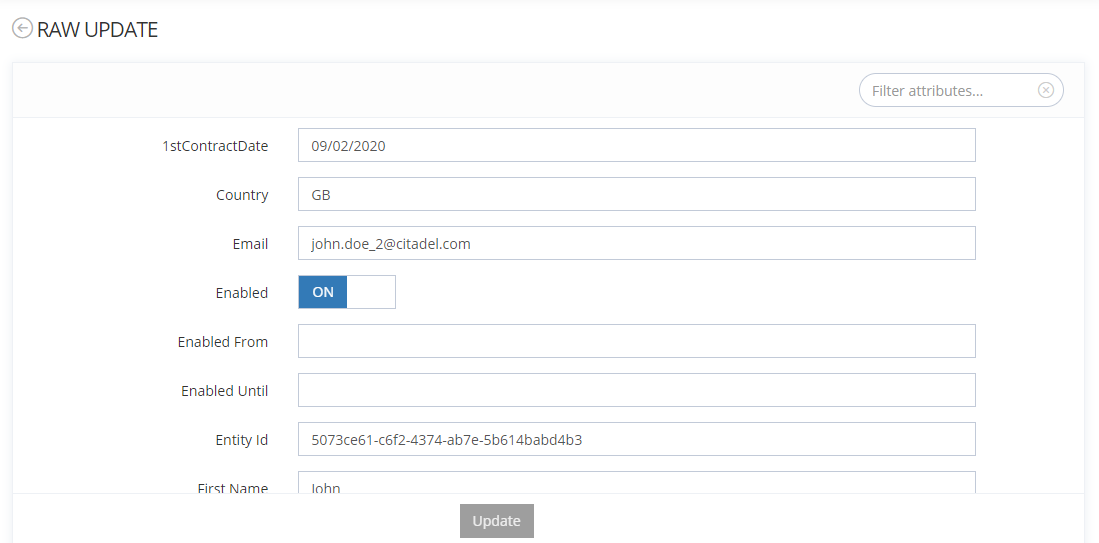

Perform a modification on attributes.

It is possible to search specific attributes (according to the searchField configuration) by typing the id of the attribute in the search field.


2

Click on the "Update" button.


3

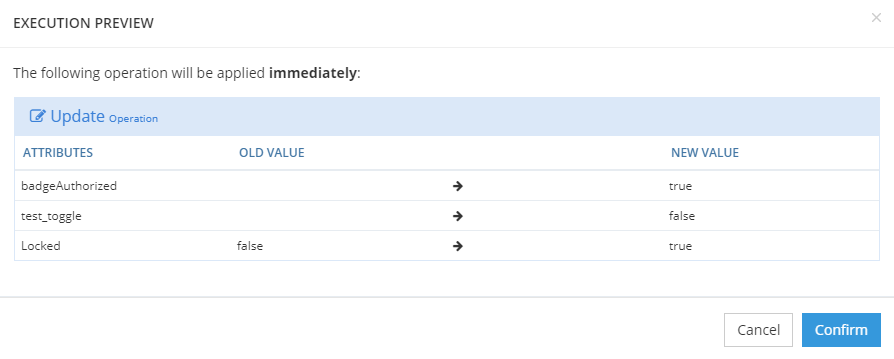

The preview of the execution is displayed (according to the submit configuration).
Click on the "Confirm" button to validate. You can cancel the modification by clicking on the "Cancel" button.


4

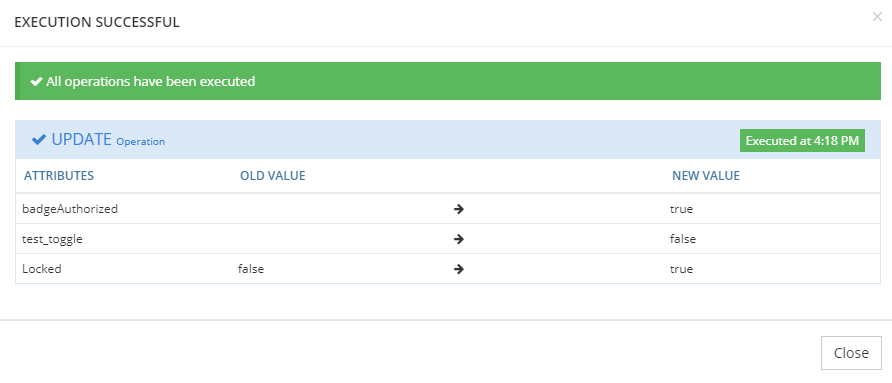

The execution is displayed (according to the submit configuration).
Click on the "Close" button to validate.


Configuration



Prerequisite

The following prerequisites are mandatory before configuring a raw update Feature:

  • Have configured an object type (Identity, Organization, Resource, Role or Role Publication).

  • Have created an object in order to update it.

Properties

Global configuration elements are detailed on the Feature page.

Mandatory configuration elements

This options allows to configure how Attributes will be displayed in the RAW_UPDATE Feature.

In each case, Attributes are displayed in the alphabetical order of their I18N translation.

Property name

Type

Mandatory

Description

Values (default value in bold)

excludeAttributes

List<Attributes>

NO

Allows to define attributes excluded from the feature.

-

excludeSecretAttributes

Boolean

NO

Allows to define if secret attributes are excluded or not from the feature.

true, false

layout

Enum

NO

Allows to define the graphical layout of the Feature.

SINGLE, TWO_EQUAL, TWO_LEFT_SMALL, TWO_RIGHT_SMALL, THREE_EQUAL, THREE_RIGHT_LEFT_SMALL

searchField

Boolean

NO

Allows to display or not the search bar.

true, false

The following requirement are recommended to build the configuration XML:

Example

Sample_Raw_Update.xml
