Columns

Definition

A Column allows, inside a Section, to arrange elements by integrating one or several Widgets.

The number of Columns must match with the specified layout in the Section.

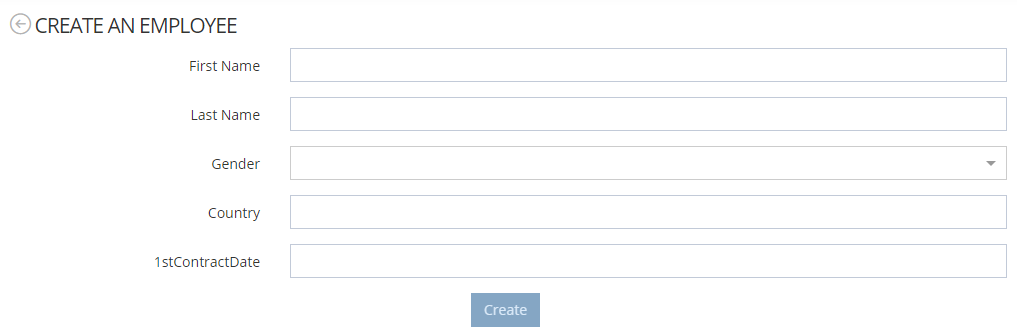

1 column

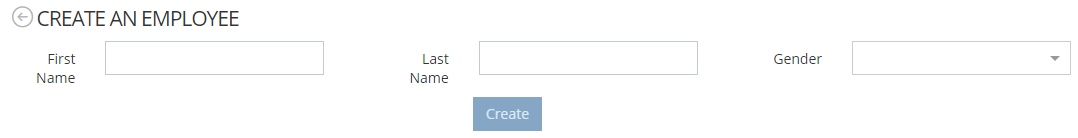

3 columns

Configuration

Properties

Property name

Type

Mandatory

Description

columns

-

YES

Allows to configure Columns.

column

-

YES

Allows to configure one or several Widget(s) will be displayed on the Column.

widgets

-

YES

Allows to configure Widget(s).

Example

1 column

3 columns
<screen>
	<views>
		<view>
			<sections>
				<section id="test-section-1">
					<layout>SINGLE</layout>
					<columns>
						<column>
							<widgets>
								<widget id="firstName" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>First Name</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>firstName</attributeId>
								</widget>
								<widget id="lastName" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>Last Name</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>lastName</attributeId>
								</widget>
								<widget id="gender" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>Gender</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>gender</attributeId>
								</widget>
								<widget id="country" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>Country</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>country</attributeId>
								</widget>
								<widget id="1stContractDate" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>1stContractDate</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>1stContractDate</attributeId>
								</widget>
							</widgets>
						</column>
					</columns>
				</section>
			</sections>
		</view>
	</views>
</screen>



<screen>
	<views>
		<view>
			<sections>
				<section id="test-section-1">
					<layout>THREE_EQUAL</layout>
					<columns>
						<column>
							<widgets>
								<widget id"firstName" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>First Name</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>firstName</attributeId>
								</widget>
							</widgets>
						</column>
						<column>
							<widgets>
								<widget id"lastName" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>Last Name</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>lastName</attributeId>
								</widget>
							</widgets>
						</column>
						<column>
							<widgets>
								<widget id"gender" xsi:type="ctdbum:AttributeEditorWidgetType">
									<hidden>false</hidden>
									<config>
										<editor/>
										<label>Gender</label>
										<mode>READ_WRITE</mode>
										<multiValued>false</multiValued>
										<override>false</override>
									</config>
									<attributeId>gender</attributeId>
								</widget>
							</widgets>
						</column>
					</columns>
				</section>
			</sections>
		</view>
	</views>
</screen>


  • Frame

    The Frame property allows to define an optional "frame" around the Screen or Section. The frame is therefore configurable at Screen and/or Section level.

  • Widgets

    Widgets are used (and mandatory) in the configuration of Features to display/edit information about Attributes or manage Memority Portal functionalities.
