Federating the S3NS Console with Memority

Federate Memority with S3NS PREMI3NS

You chose PREMI3NS, the sovereign cloud offer by Thales and Google Cloud, to keep your workloads within the European trust perimeter. To stay consistent with that choice, Memority is the identity provider built to federate with S3NS. This guide shows you how to connect your Memority tenant to PREMI3NS so your users can sign in to the cloud console with the identities you already manage in Memority.

How the federation works

Memority acts as your OpenID Connect (OIDC) identity provider. When a user signs in to the PREMI3NS console, they are redirected to Memority for authentication. Memority issues an OIDC token that carries:

• sub — the user's unique identifier in Memority. It must match the login expected in the PREMI3NS console.

• groups — a list of strings representing the S3NS groups the user belongs to, for example ["s3ns-prod-devops", "s3ns-prod-developers"]. This claim is populated automatically by Memority through the app.s3ns.groups right (configured in each scenario below).

The groups claim is returned as a JSON array by default.

PREMI3NS receives this token through a Workforce Identity Pool, reads the groups claim, and maps it to Google Groups. Those groups carry the IAM permissions you configure in PREMI3NS.

The two mappings that matter:

• Subject mapping — identifies the user.

• Group mapping — determines what the user is allowed to do.

TODO: In order to … in Memority Identity Management you have two ways to configure the roles ETC.
These are two examples (i.e. there can be other ways to configure)

Choose your scenario

Prerequisites

• Access to an active Memority tenant with administrator rights. TODO: add what type of admin rights you need to configure M roles and federations. Demander à Claude ADM/USR

• A PREMI3NS organisation with a user holding roles/iam.workforcePoolAdmin at the organisation level.

• Access with PREMI3NS admin rights on your project (tenant in s3ns)

• The gcloud CLI installed locally and configured to target the S3NS universe (s3nsapis.fr / cloud.s3nscloud.fr).

• The list of S3NS groups (Scenario A) or organisational dimensions (Scenario B) you want to federate.

Scenario A. Role-based federation

In this scenario, you define applicative roles in Memority that correspond to S3NS groups. Administrators assign those roles to users manually.

Example

A cybersecurity consulting firm with around 80 employees defines four roles. Each role name matches an S3NS group name exactly.

Step 1. Create the S3NS application

In the Memority administration console, create the S3NS application.

Step 2. Create the app.s3ns.groups right

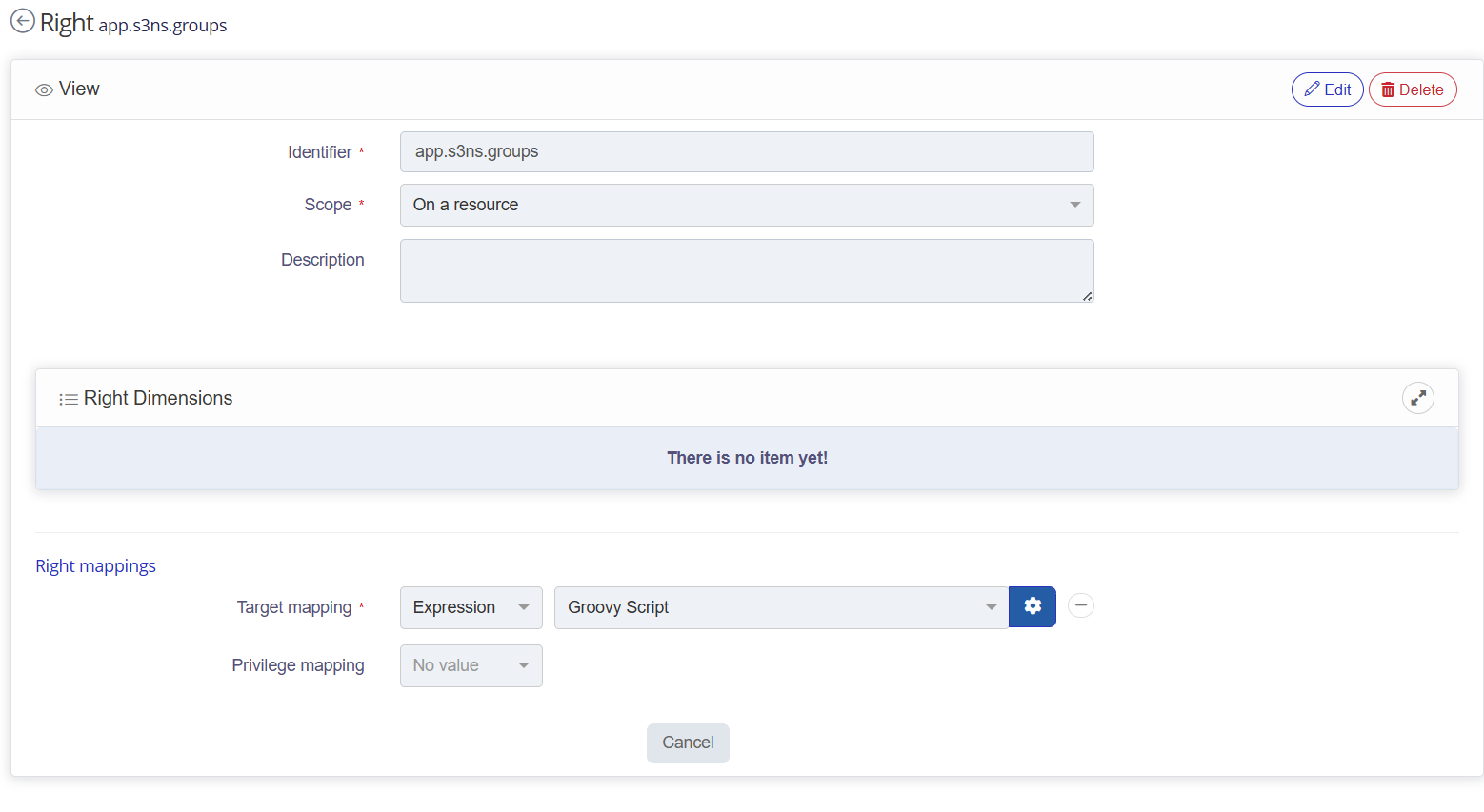

Create a right named app.s3ns.groups with the following configuration:

• Scope: On a resource

• Right Dimensions: none

• Right mappings → Target mapping: Expression (Groovy Script)

Configure the Groovy Script to retrieve the names of all roles assigned to the user that start with s3ns. These role names populate the groups claim sent to PREMI3NS. A role whose name does not start with s3ns is silently excluded.
Your Memority team can provide the exact script

Step 3. Create the applicative roles

Create one applicative role per S3NS group (for example s3ns-prod-ps). For each role, add two rights:

• app.access.<applicationID> — grants access to the application.

• app.s3ns.groups — produces the list of S3NS groups for the token.

Assign the relevant role(s) to each user. A user can be assigned one or more roles.

Step 4. Create the attribute function

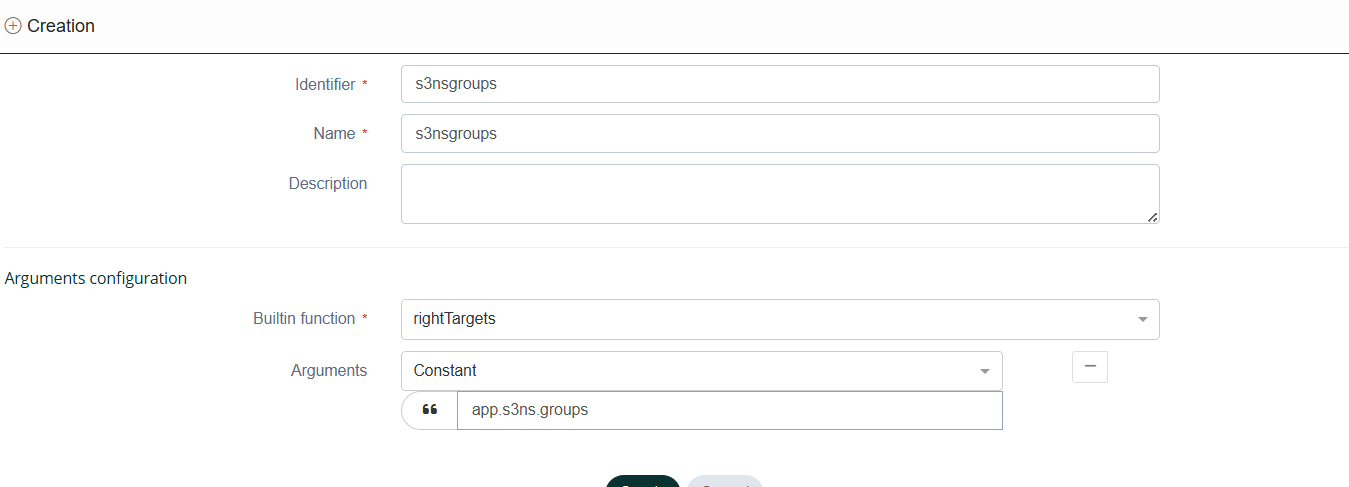

In the My-Access configuration interface, create an attribute function named s3nsgroups. Configure it to use the rightTargets builtin function with the constant argument app.s3ns.groups.
The function reads the values produced by the app.s3ns.groups right (the role names retrieved by the Groovy Script) and constructs the groups claim sent to PREMI3NS.

Step 5. Create the federation in Memority

Create the federation on the S3NS application. Use one federation per environment (production and staging).

The custom scopes carry the information PREMI3NS needs:

• groups — the list of S3NS group names the user belongs to, produced by the s3nsgroups attribute function from the app.s3ns.groups right.

• name — the user's full name, for example Jane Doe.

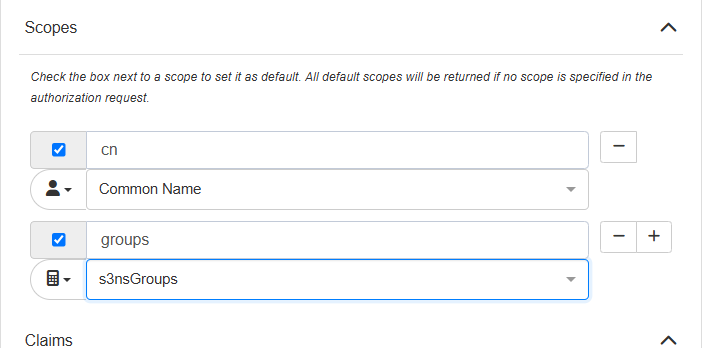

In the federation Scopes section, source the groups scope from the s3nsgroups attribute function.

PREMI3NS fetches the groups and name claims from the user_info endpoint after authentication. You do not need to embed these claims directly inside the ID token.

Replace <your-pool-name> and <your-provider-name> with the names you choose in Steps 6 and 7. Throughout this guide we use memority-fede-pool and memority-idp-prod.

For staging, repeat this configuration with a dedicated client ID such as app-premi3ns-staging.

Validate the federation configuration

Before moving to PREMI3NS, it is recommended to quickly validate the OIDC flow using an API testing client (i.e. Insomnia, Postman, etc.):

1. Create a new OAuth 2.0 request using the Authorization Code grant type. Set the authorisation URL to your Memority issuer and the token URL to <your-tenant-issuer>/token. Add the scopes openid, groups, and name.

2. Complete the login flow in the browser window that opens. Postman or Insomnia will exchange the code for tokens automatically.

3. Send a GET request to <your-tenant-issuer>/userinfo with the obtained access token as a Bearer token in the Authorization header.

4. Confirm the response body contains:

   • name with the user's full name

   • groups as a list of S3NS group names, for example ["s3ns-devops", "s3ns-viewer"]

Step 6. Create the Workforce Identity Pool in PREMI3NS

1. Sign in to the PREMI3NS console with a user holding roles/iam.workforcePoolAdmin at the organisation level.

2. Navigate to IAM & Admin → Workforce Identity Federation at the organisation level.

3. Click Create pool and configure:

   • Name: memority-fede-pool (TODO this is an example)

   • Session duration: 12 hours (the maximum currently supported)

4. Save the pool.

Step 7. Add the Memority provider to the pool

Inside the pool, create an OIDC provider.

The provider wizard walks you through four sub-steps:

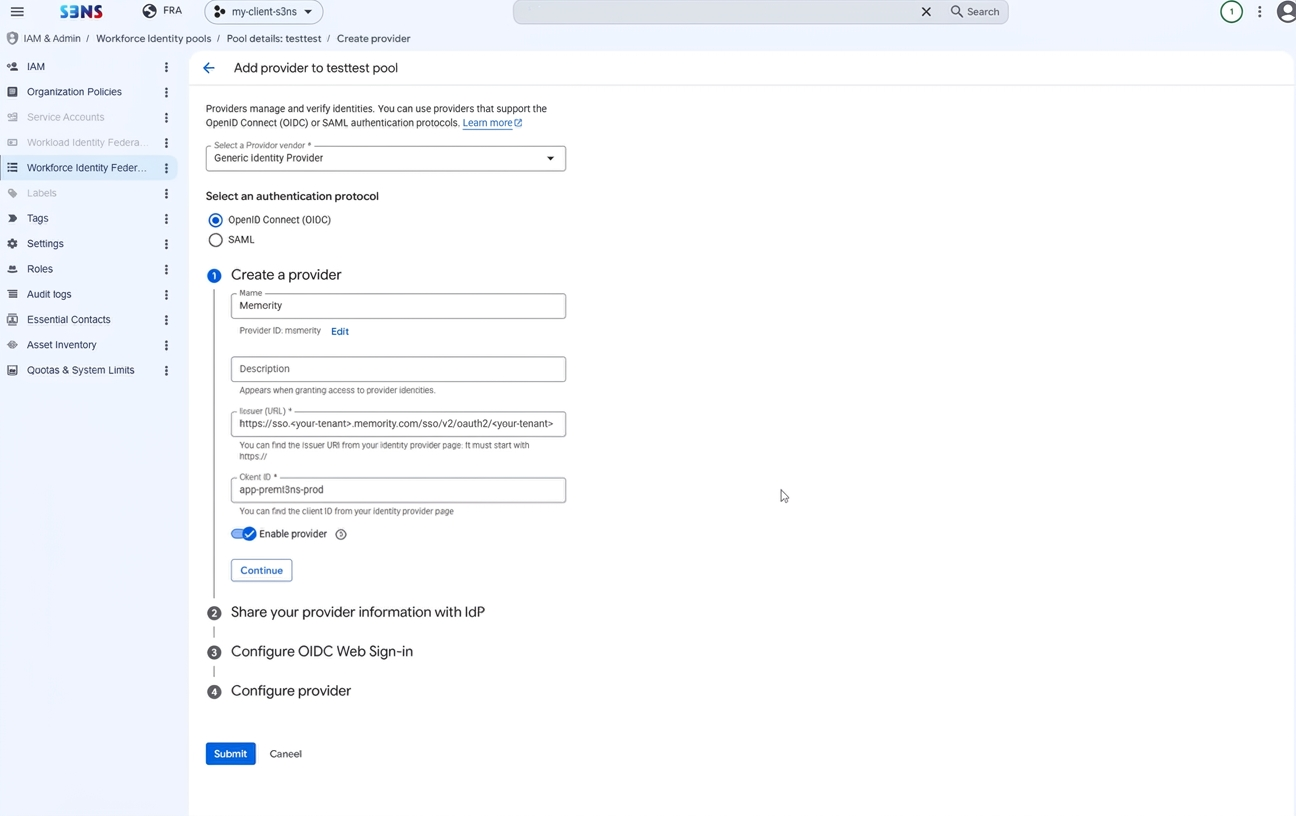

1. Create a provider
Select Generic Identity Provider as the provider vendor and OpenID Connect (OIDC) as the authentication protocol. Enter the name, issuer URL, and client ID from the table above.

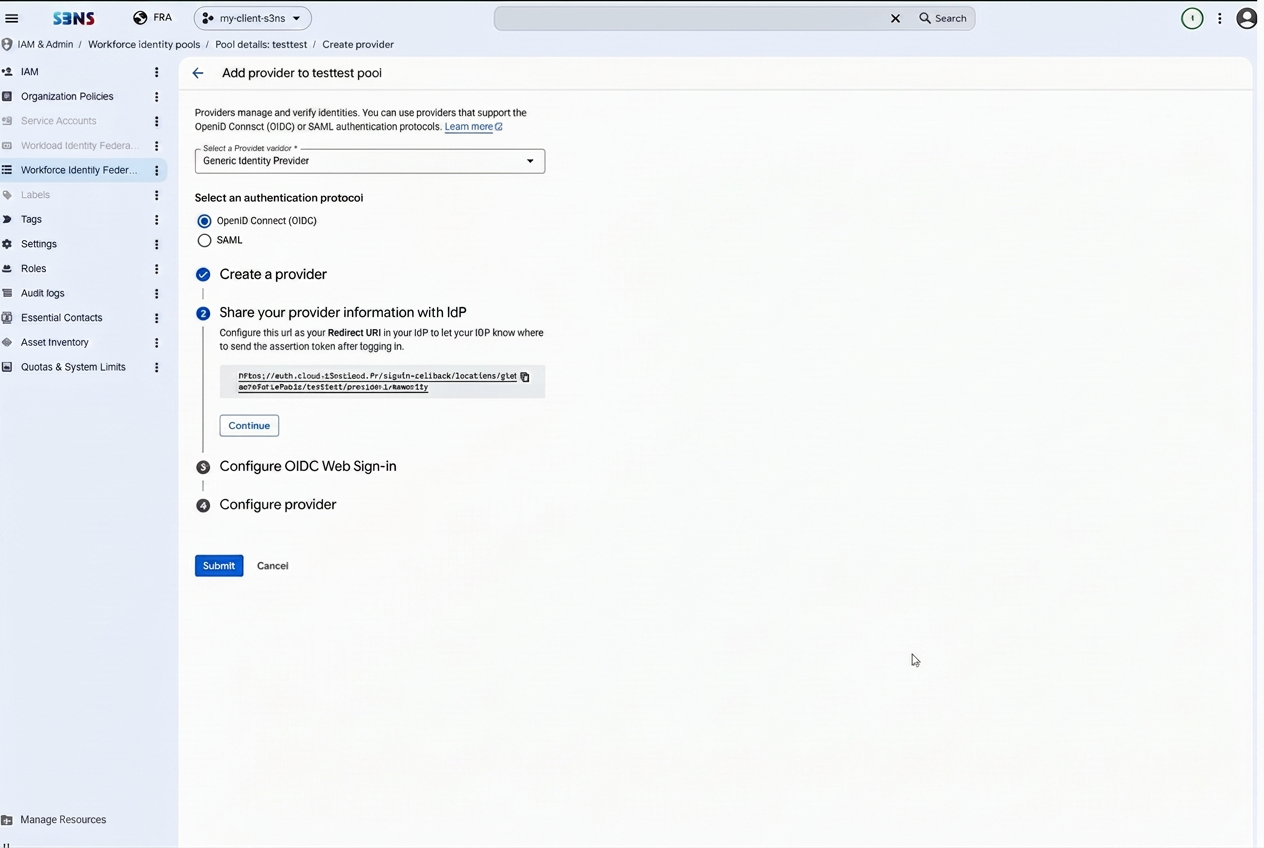

2. Share your provider information with IdP

Copy the Redirect URI shown on this screen — it must match the Redirect URI you set in the Memority federation (Step 5).

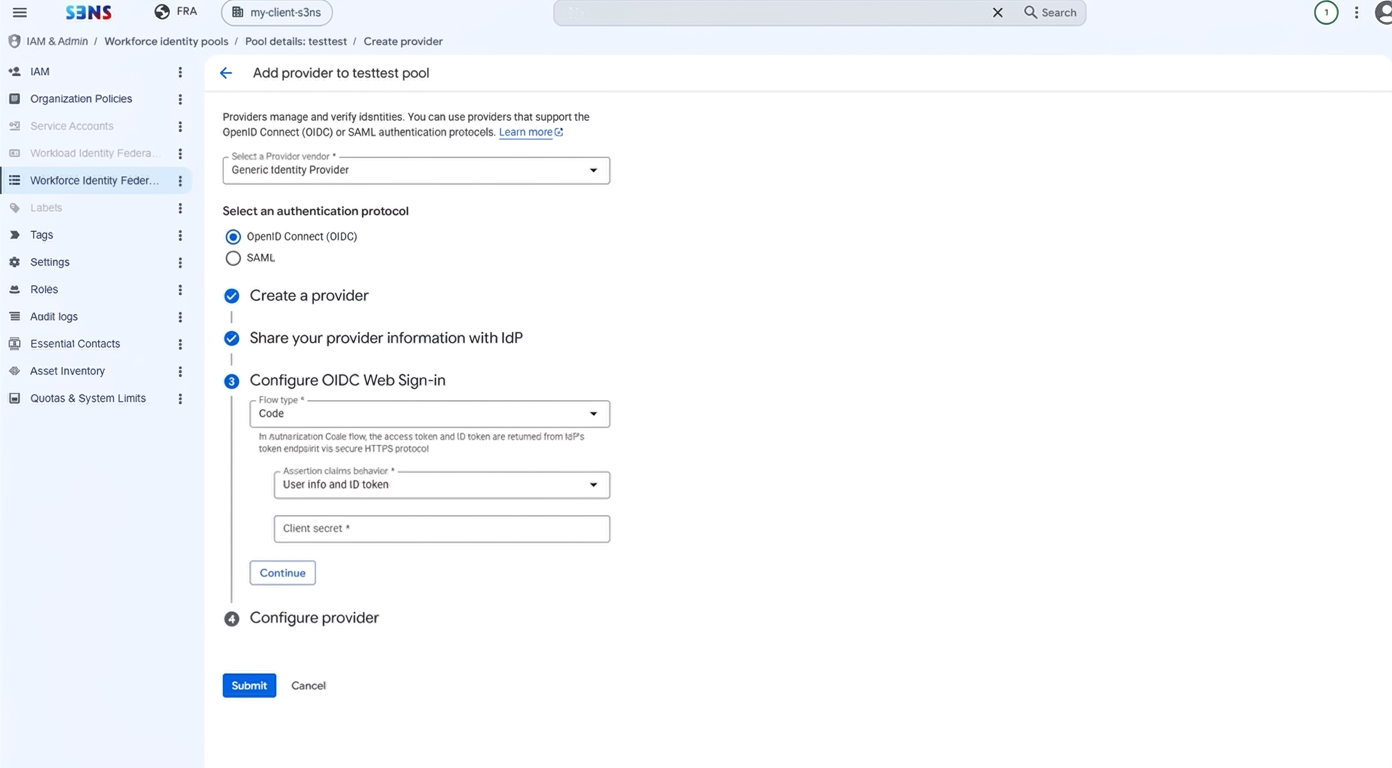

3. Configure OIDC Web Sign-in

Set Flow type to Code and Assertion claims behavior to User info and ID token. Enter the client secret generated by Memority in Step 5.

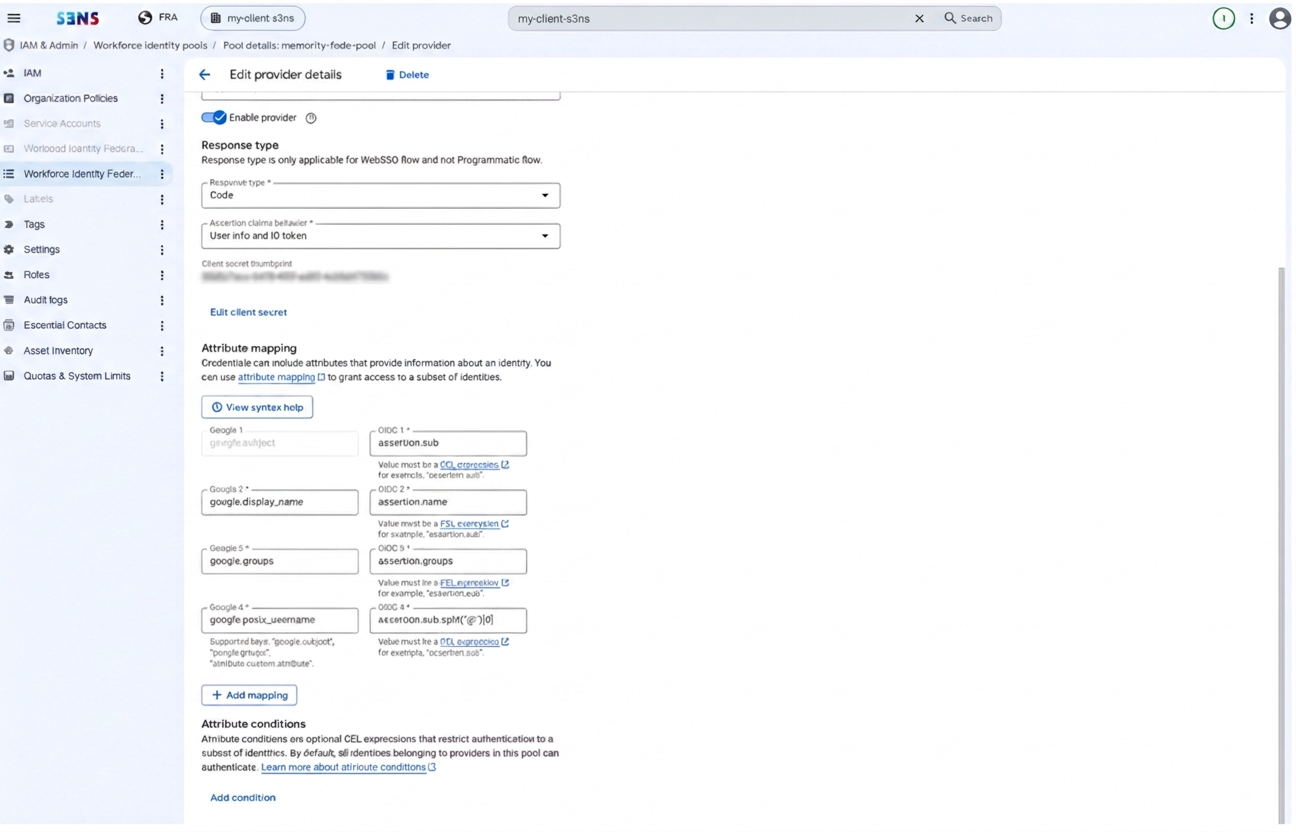

Attribute mapping:

google.subject        = assertion.sub
google.display_name   = assertion.name
google.posix_username = assertion.sub.split("@")[0]
google.groups         = assertion.groups

Memority returns the groups claim as a JSON array, which maps directly to google.groups without any transformation.

Submit the form to create the provider.

Step 8. Add the additional scopes via gcloud

The PREMI3NS console UI does not currently allow declaring extra OIDC scopes beyond openid. Use the gcloud CLI to add groups and name.

8.1. Authenticate as a super-administrator

TODO: check whether the super admin is really called this way and add the relevant info in the prerequisites

Create a login configuration file for the S3NS universe (for example login-config-s3ns.json):

{
  "universe_domain": "s3nsapis.fr",
  "universe_cloud_web_domain": "cloud.s3nscloud.fr",
  "type": "external_account_authorized_user_login_config",
  "audience": "//iam.googleapis.com/locations/global/workforcePools/<your-pool>/providers/oidc",
  "auth_url": "https://auth.cloud.s3nscloud.fr/authorize",
  "token_url": "https://sts.s3nsapis.fr/v1/oauthtoken",
  "token_info_url": "https://sts.s3nsapis.fr/v1/introspect"
}

Then sign in:

gcloud auth login --login-config=login-config-s3ns.json

8.2. Add the scopes

gcloud iam workforce-pools providers update-oidc memority-idp-prod \
  --workforce-pool=memority-fede-pool \
  --web-sso-additional-scopes="groups,name" \
  --location=global

After this command, PREMI3NS will request the additional scopes when redirecting users to Memority for authentication.

Step 9. Distribute the sign-in URL

Share this URL with your users:

https://auth.cloud.s3nscloud.fr/signin/locations/global/workforcePools/memority-fede-pool/providers/memority-idp-prod?continueUrl=https://console.cloud.s3nscloud.fr/

The continueUrl parameter controls the page users land on after authentication.

Step 10. Grant IAM permissions

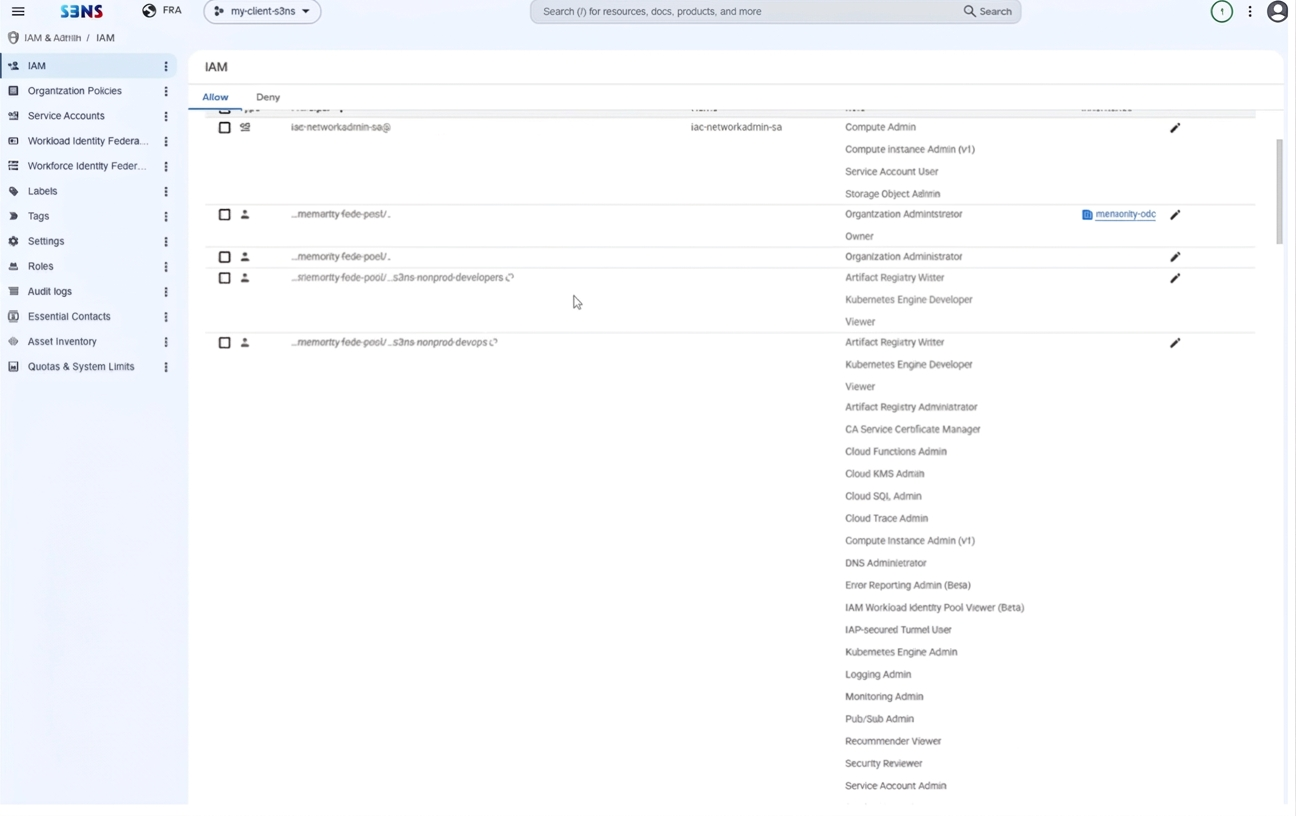

Bind IAM roles to your federated groups in the PREMI3NS console. The principal format for a federated group is:

principalSet://iam.googleapis.com/locations/global/workforcePools/memority-fede-pool/group/s3ns-devops

Repeat for each group. Refer to the PREMI3NS IAM documentation for the full binding syntax.

Scenario B. Dimension-based federation

In this scenario, access is derived automatically from organisational dimensions already present in your Memority tenant — attributes such as department, business unit, or environment scope, typically sourced from your HR or directory data.

This approach suits large organisations where manual role assignment at scale is not practical.

How dimensions work

At least one applicative role must exist in Memority — typically an S3NS Console role that grants access to the application. The dimensions are configured on that role to control which S3NS groups the user receives, based on their organisational attributes.

Scenario B uses the same app.s3ns.groups right as Scenario A, but configured with a dimension (values from a reference table) instead of a Groovy Script expression.

There is no fixed naming convention for dimensions. The exact attribute names depend on your Memority tenant configuration. Work with your Memority administrator to identify the relevant attribute names and their values.

Example

A large industrial group with around 4,000 employees has two dimensions configured on the S3NS Console role in Memority:

• department — values such as rd, operations, finance

• environment_scope — values such as prod, nonprod

The dimensions are configured on the S3NS Console role. The S3NS group name is then built by combining the dimension values assigned to that role for each user:

When a user moves to a new department or changes environment scope in Memority, their PREMI3NS access updates automatically — no manual intervention required.

Step 1. Configure the S3NS application with dimensions

1.1. Create the reference table

In the Memority administration console, create a reference table named s3nsgroups containing all the S3NS group values you want to manage (for example s3ns-prod-audit, s3ns-prod-ops).

1.2. Create the S3NS application

Create the S3NS application in Memority.

1.3. Create the app.s3ns.groups right with a dimension

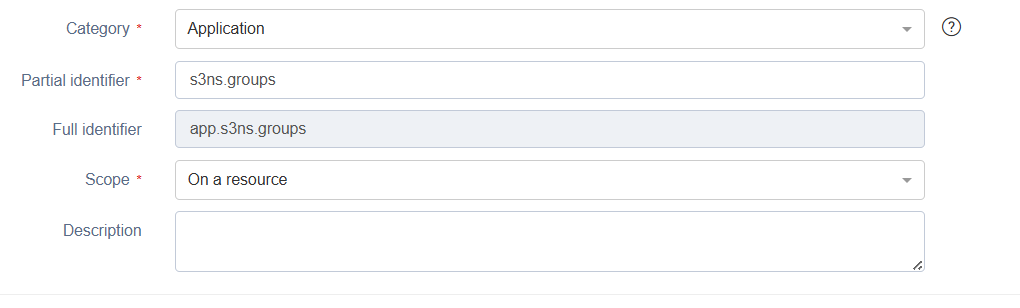

Create the app.s3ns.groups right (Scope: On a resource).

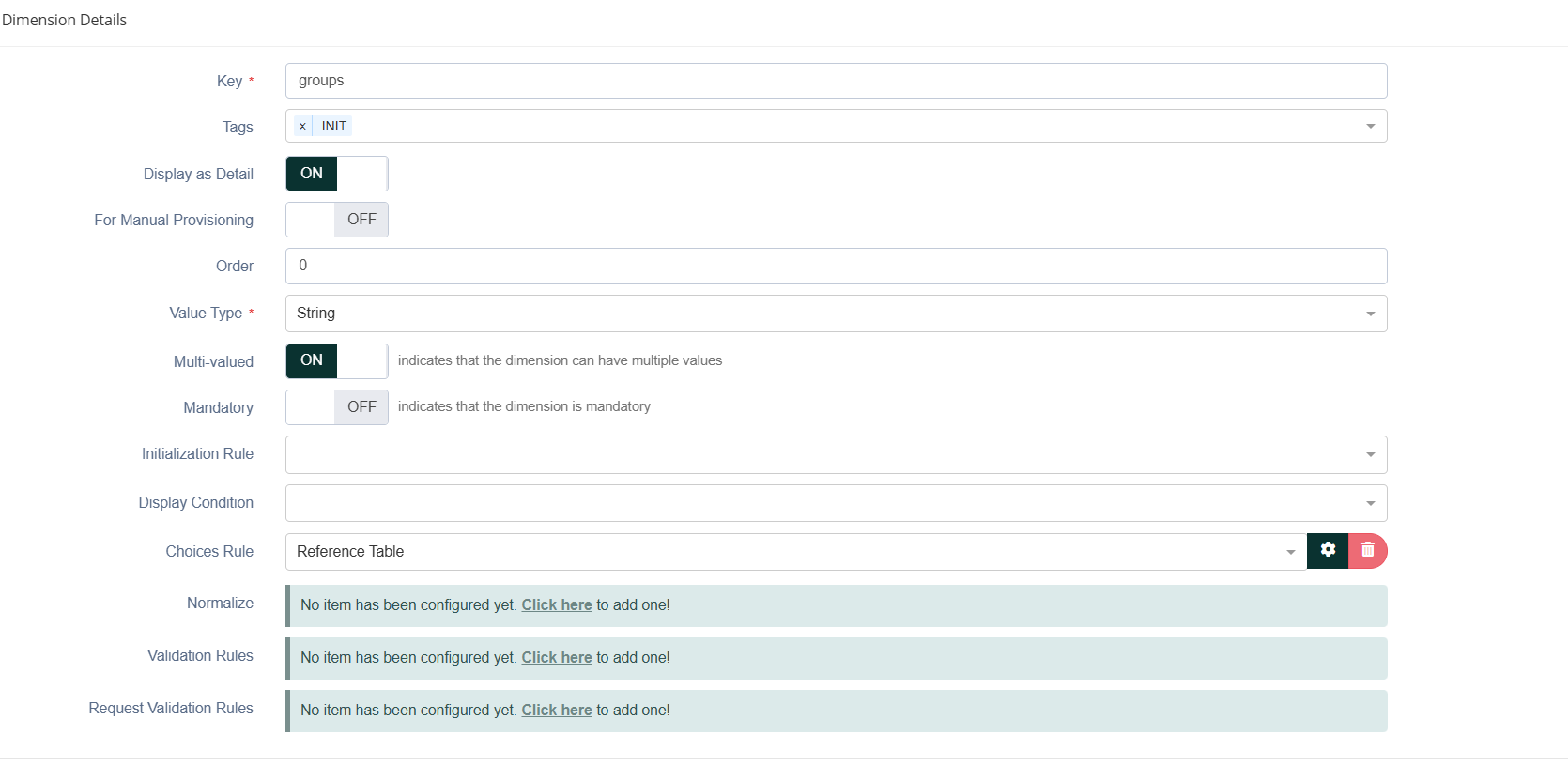

Configure a dimension on this right with a choiceRule pointing to the s3nsgroups reference table:

Set the dimension mapping type to None so it is exposed at the Role level.

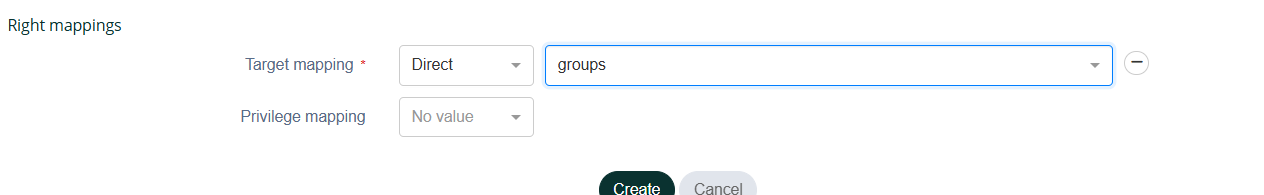

At the bottom of the form, set the right's Target mapping to Direct → groups, so the right maps directly to the dimension key, then create the right.

1.4. Create the applicative role

Create an applicative role on the S3NS application — for example S3NS Console — with two rights:

• app.access.<S3NS> — grants access to the application.

• app.s3ns.groups — carries the dimension configured in 1.3.

The dimension is set at the role level.

Step 2. Create the attribute function

Create the s3nsgroups attribute function exactly as described in Scenario A, Step 4. In Scenario B, rightTargets retrieves the dimension values assigned to the app.s3ns.groups right for the user — the S3NS group names selected from the reference table.

Step 3. Create the federation

Create the federation on the S3NS application using the attribute function defined in Step 2.
In the federation Scopes section, source the groups scope from the s3nsGroups attribute function.

Steps 4 to 8. PREMI3NS configuration

Follow Scenario A Steps 6 to 10 without changes. The google.groups attribute mapping is identical to Scenario A:

google.groups = assertion.groups

The attribute function has already constructed the correct group values from rightTargets before the token is issued.

Support

If you encounter issues during setup, contact your Memority support representative.
