Definition

Risk-Based Authentication Replay (RBA Replay) lets you test your RBA configuration against real, historical authentication data before deploying any changes. Since any configuration change can significantly impact which authentication mechanisms are available to users, RBA Replay lets you validate your rules and policies against real traffic first.

The output is an RBA Replay Report, with detailed statistics on score distribution, policy matches, and rule usage.

Prerequisites

RBA Replay is intended for integrators who have already configured RBA on their tenant. Before starting a replay, ensure the following:

Prerequisite	Details
RBA is configured	At least one Environment Risk Policy, User Risk Policy, and Authentication Risk Policy must be configured on the tenant
Authentication mechanisms are defined	Authentication mechanism definitions with risk correction values must exist
Historical data is available	The tenant must have recorded authentication events to replay. The further back and the larger the dataset, the more representative the results
Administration console access	You must have access to the Administration console → Analytic Replays

Configuration

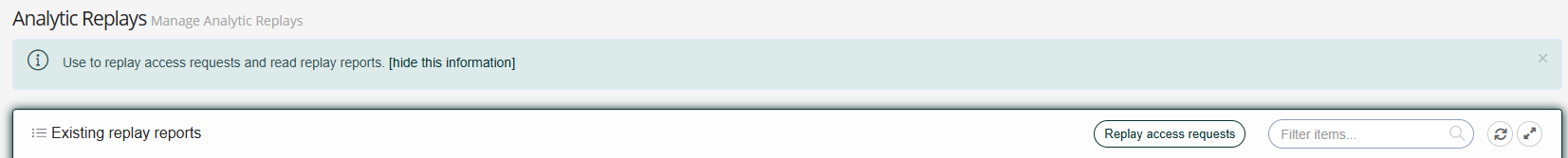

To start a new replay, navigate to the Analytic Replays page in the Administration console and click Replay access requests.

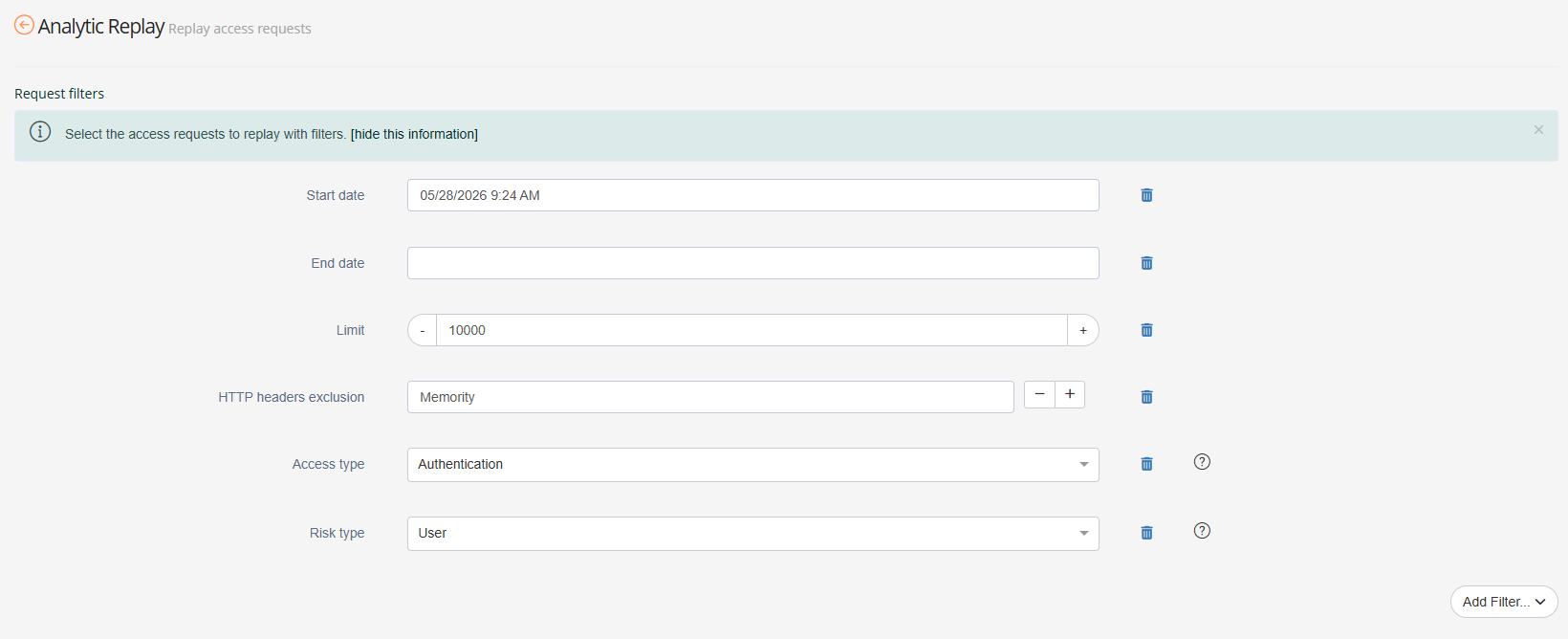

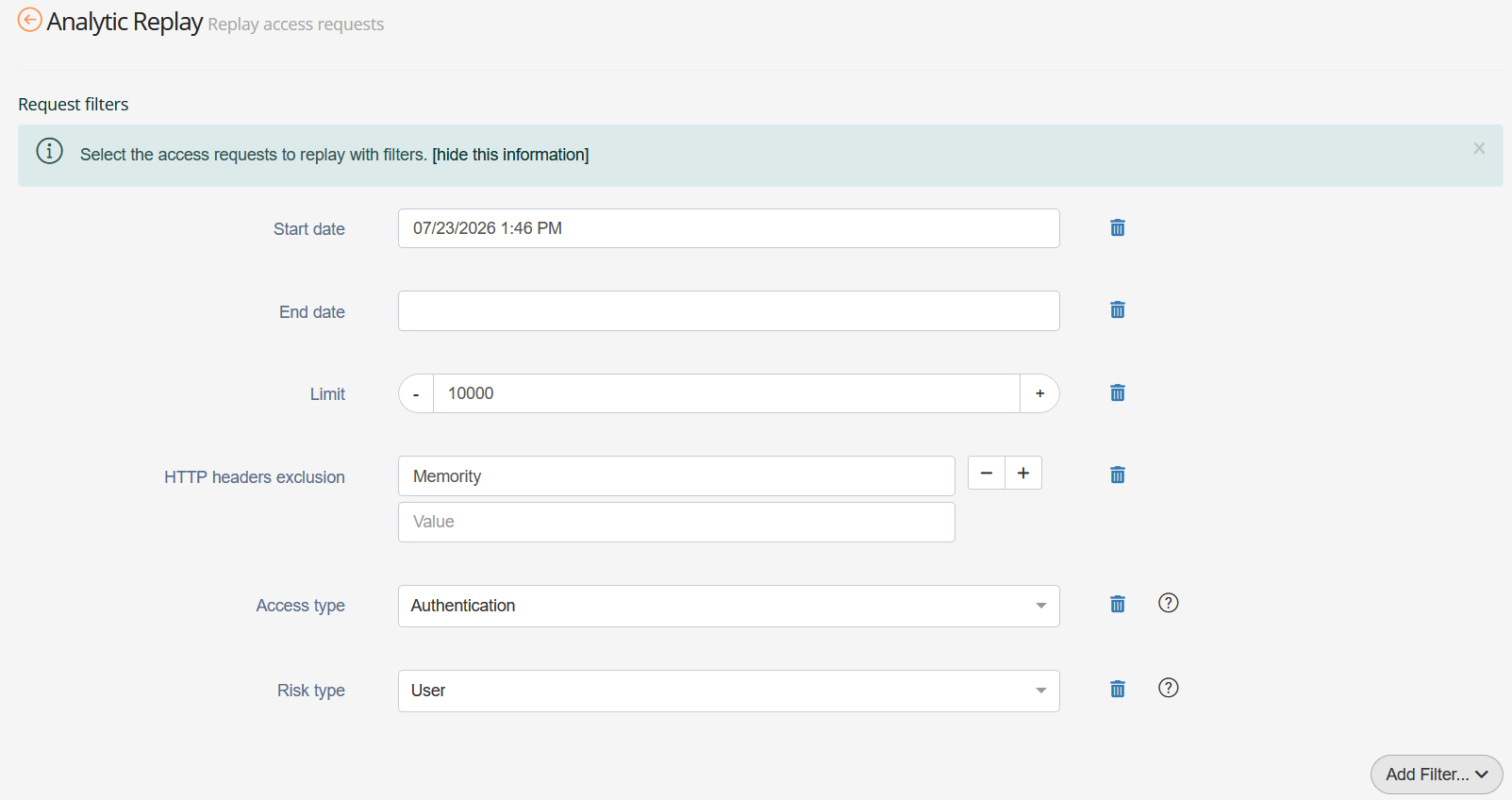

Request Filters

Select the historical authentication data to replay by configuring the following filters. Add or remove filters as needed.

Filter	Type	Usage
Start date	Date	Sets the earliest authentication to include in the replay
End date	Date	Sets the latest authentication to include in the replay
Limit	Integer	Caps the maximum number of requests to replay
HTTP headers exclusion	String	Excludes requests containing a specific HTTP header, to filter out non-human traffic (e.g. automated health check probes)
Access type	Enum	Filters by request type: `authentication` (initial session creation) or `authorization` (access to a subsequent application using an existing session)
Risk type	Enum	Filters by request risk type: `environment risk` or `user risk`. Use this to focus the replay on a specific dimension of risk scoring and isolate the impact of the corresponding policies and rules.

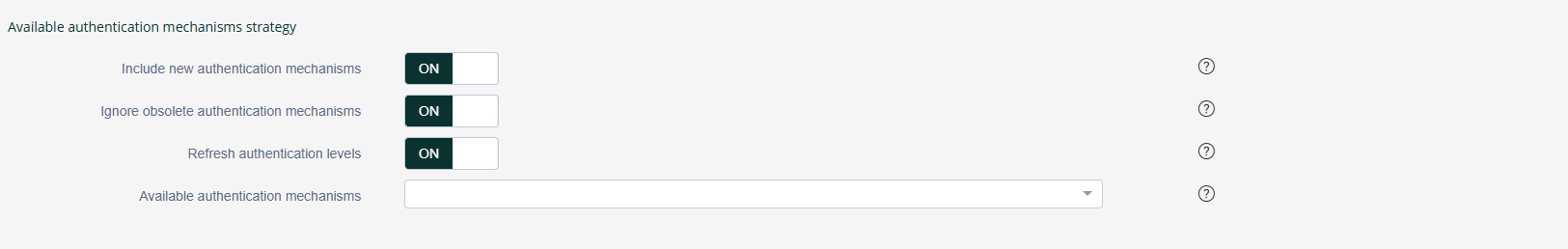

Available authentication mechanisms strategy

Available authentication mechanisms may change over time if you add, remove, or reconfigure them after recording the historical data. This section controls how the replay handles those differences.

Option	Usage
Include new authentication mechanisms	Includes mechanisms added after the historical data period
Ignore obsolete authentication mechanisms	Excludes mechanisms deleted since the historical data period
Refresh authentication levels	Uses the current authentication level for each mechanism rather than the level at the time of the original request
Available authentication mechanisms	Restricts the replay to a specific set of mechanisms. If left empty, the replay includes all available mechanisms

RBA Configuration

The Configuration section contains the full RBA configuration the replay uses to score requests. It includes:

Component	Description
Authentication mechanism definitions	Each mechanism and its associated risk correction value, which the system subtracts from the computed risk score to determine whether the mechanism is available for a given request
User Risk policies and rules	Rules that evaluate user behaviour (e.g. login time, location) and adjust the user risk score accordingly
Environment Risk policies and rules	Rules that evaluate the user's environment (e.g. device, browser) and adjust the environment risk score
Authentication Risk policies and rules	Policies that define, for a given application or context, the Maximum Acceptable Risk (MAR) and the minimum authentication level the system requires

By default, the replay uses the current active RBA configuration. To test a different configuration, modify the XML directly in the editor or upload a custom XML file.

A custom configuration must be complete and valid. If an element is missing, the system will not fall back to the current configuration.

Once you have defined all settings, click Replay access requests to start the replay. The duration of the replay depends on the volume of events returned by the request filters.

Reading the Replay Report

Once the replay completes, the report breaks down results across three risk dimensions: Environment Risk, User Risk, and Authentication Risk.

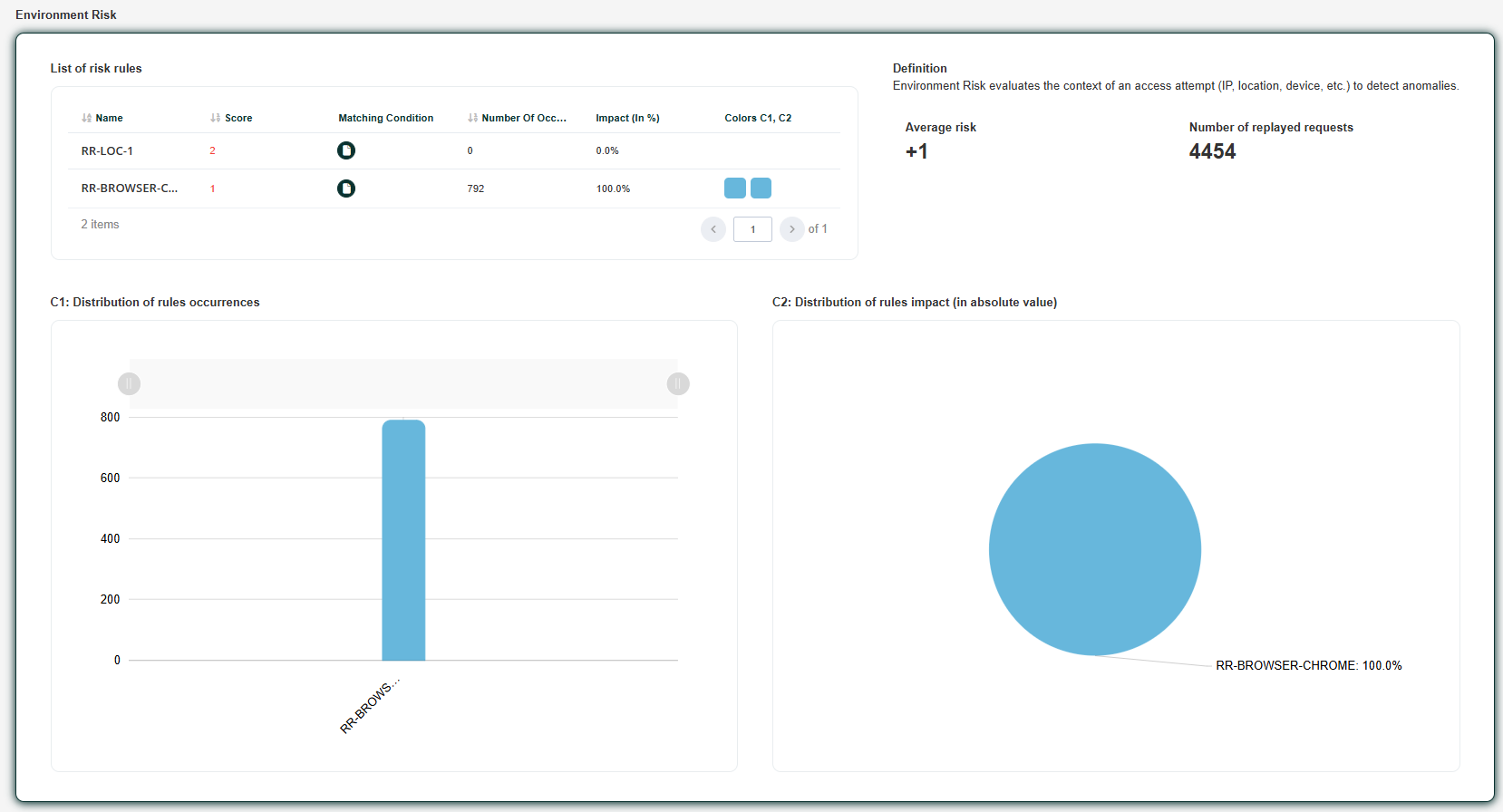

Environment Risk

This section covers the unique Environment Risk policy and how its rules performed against the replayed requests.

Element	Description
Average environment risk score	The average score the system computed across all replayed requests
Rules table	For each environment risk rule: its risk score, matching condition, number of occurrences, and impact as a percentage
Distribution chart	A visual representation of rule occurrences and their impact. Bars above the line indicate a positive impact (risk increases); bars below indicate a negative impact (risk decreases)

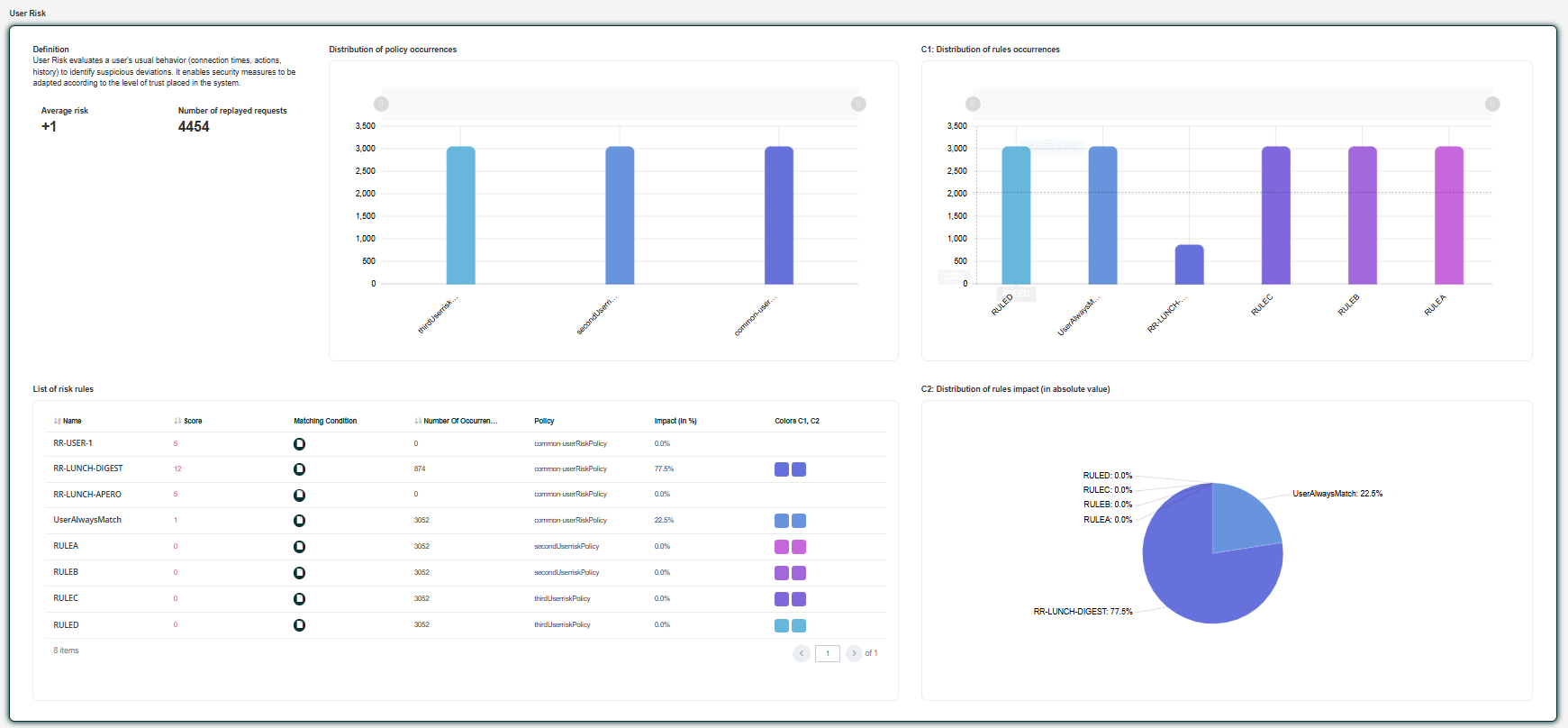

User Risk

This section covers all User Risk policies and their rules.

Element	Description
Policy distribution	A progress bar showing which User Risk policies matched across the replayed requests
Average user risk score	The average score the system computed across all replayed requests
Rules table	For each user risk rule: its risk score, matching condition, number of occurrences, and impact as a percentage
Distribution chart	A visual representation of rule occurrences and their impact. Bars above the line indicate a positive impact (risk increases); bars below indicate a negative impact (risk decreases)

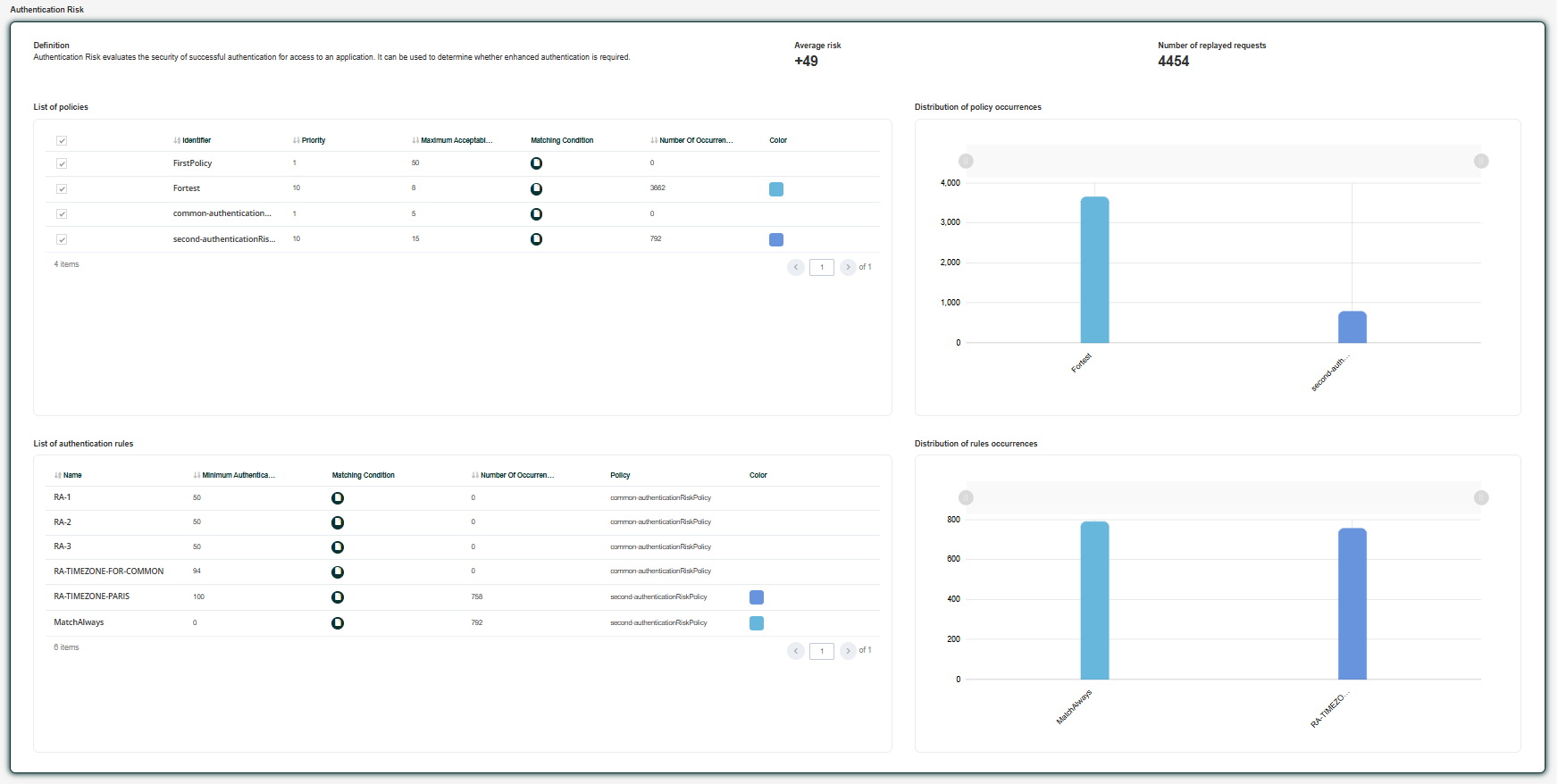

Authentication Risk

This section covers all Authentication Risk policies and shows which authentication mechanisms the system made available given the computed risk scores.

This is the most important part of the report. Authentication Risk shows the direct impact of your configuration on users . It reveals which authentication mechanisms were available to them, and is the clearest indicator of whether your configuration achieves the intended user experience.

Element	Description
Mechanism distribution	For each policy, the distribution of authentication mechanisms the system determined as available
Policies table	Lists all Authentication Risk policies with their identifier, priority, Maximum Acceptable Risk (MAR), matching condition, and the number of times each policy matched
Rules table	For each authentication rule within a policy: its minimum authentication level, matching condition, number of occurrences, and impact as a percentage

Interpreting the Results

Once you have read the report, use the following questions to assess whether your configuration achieves the desired outcome. You can also adjust settings directly in the replay form to obtain an immediate estimate of the impact of your changes.

Check	What to look for
Mechanism distribution*	Verify that the expected authentication mechanisms are available in the Authentication Risk section
Score distribution	Review the score distribution across Environment Risk and User Risk
Rule coverage	Review the occurrences column in each rules table to identify rules that never match or match too broadly
Policy coverage	Check what percentage of authentications each Authentication Risk policy allows or blocks

*This is the most critical part to check. Mechanism distribution directly reflects the authentication options presented to your users.

Configuration Structure

This section describes the structure of the XML configuration passed to the replay. The following example combines all configurable objects and illustrates what each one does.

XML

<kit:DataSet xmlns:kit="http://www.memority.com/toolkit/1_0"
             xmlns:riskrba="http://www.memority.com/risk/rba/1_0"
             xmlns:xs="http://www.w3.org/2001/XMLSchema"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

   <riskrba:EnvironmentRiskPolicy>
      <riskRules>
         <riskRule>
            <enabled>true</enabled>
            <name>ENV-RR-DEV-1</name>
            <matchingCondition>
               <script><![CDATA[
                  // Device not used since 30 days
                  DYN.device.lastAuthenticationInterval >= 30]]></script>
            </matchingCondition>
            <riskCorrection>10</riskCorrection>
         </riskRule>
         <riskRule>
            <enabled>true</enabled>
            <name>ENV-RR-DEV-2</name>
            <matchingCondition>
               <script><![CDATA[
                  // Device not used since 90 days
                  DYN.device.lastAuthenticationInterval >= 90]]></script>
            </matchingCondition>
            <riskCorrection>15</riskCorrection>
         </riskRule>
      </riskRules>
   </riskrba:EnvironmentRiskPolicy>

   <riskrba:UserRiskPolicy id="common-userRiskPolicy">
      <name>Common User Risk Policy</name>
      <description>Common user risk policy for all users.</description>
      <matchingCondition>
         <script><![CDATA[return true]]></script>
      </matchingCondition>
      <riskRules>
         <riskRule>
            <enabled>true</enabled>
            <name>USER-RR-AUTH-1</name>
            <matchingCondition>
               <script><![CDATA[
                  // User authenticated within the last 24 hours
                  DYN.user.lastAuthenticationDate.isAfter(Instant.now().minus(24, ChronoUnit.HOURS))]]></script>
            </matchingCondition>
            <riskCorrection>-5</riskCorrection>
         </riskRule>
         <riskRule>
            <enabled>true</enabled>
            <name>USER-RR-MOM-1</name>
            <matchingCondition>
               <script><![CDATA[
                  // Authentication during night hours
                  LocalTime lt = DYN.location.localTime
                  lt.isAfter(LocalTime.of(22, 0)) || lt.isBefore(LocalTime.of(06, 0))]]></script>
            </matchingCondition>
            <riskCorrection>20</riskCorrection>
         </riskRule>
         <riskRule>
            <enabled>true</enabled>
            <name>USER-RR-LOC-1</name>
            <matchingCondition>
               <script><![CDATA[
                  // Trusted country — do not apply location risk
                  if (DYN.location.countryCode == 'FR') {
                     return false
                  }
                  return DYN.user.newLocation]]></script>
            </matchingCondition>
            <riskCorrection>30</riskCorrection>
         </riskRule>
         <riskRule>
            <enabled>true</enabled>
            <name>USER-RR-LOC-2</name>
            <matchingCondition>
               <script><![CDATA[
                  // Authentication from an unusual distance at high speed
                  DYN.user.lastLocationDistance > 100 && DYN.user.lastLocationVelocity > 10]]></script>
            </matchingCondition>
            <riskCorrection>50</riskCorrection>
         </riskRule>
      </riskRules>
   </riskrba:UserRiskPolicy>

   <riskrba:AuthenticationRiskPolicy id="usrPortal-authenticationRiskPolicy">
      <name>USR Portal Authentication Policy</name>
      <description>USR Portal Authentication Policy</description>
      <evaluationPriority>100</evaluationPriority>
      <matchingCondition>
         <script><![CDATA[
            // Apply to the user portal application
            def appName = APP?.name as String ?: ""
            return appName.contains("usrPortal")]]></script>
      </matchingCondition>
      <maximumAcceptableRisk>100</maximumAcceptableRisk>
      <authenticationRules>
         <authenticationRule>
            <enabled>true</enabled>
            <name>RR-APP-1</name>
            <matchingCondition>
               <script><![CDATA[return true]]></script>
            </matchingCondition>
            <minimumAuthenticationLevel>0</minimumAuthenticationLevel>
         </authenticationRule>
      </authenticationRules>
   </riskrba:AuthenticationRiskPolicy>

</kit:DataSet>

Object / Rule	What it does	Read more
`ENV-RR-DEV-1`	If the device last authenticated 30 or more days ago, a correction of +10 is applied	Environment Risk Policy
`ENV-RR-DEV-2`	If the device last authenticated 90 or more days ago, an additional +15 is applied — stacking with `ENV-RR-DEV-1` for a total of +25	Environment Risk Policy
`common-userRiskPolicy`	This user risk policy applies to all users	User Risk Policies
`USER-RR-AUTH-1`	If the user authenticated within the last 24 hours, a correction of −5 is applied, reducing the risk score	User Risk Policies
`USER-RR-MOM-1`	If the authentication occurs after 10:00 PM or before 6:00 AM, a correction of +20 is applied	User Risk Policies
`USER-RR-LOC-1`	Uses `return false` as an early exit: if the user is authenticating from France, the rule immediately contributes no correction. For all other countries, if the current location is new, a correction of +30 is applied.	User Risk Policies
`USER-RR-LOC-2`	If the user is more than 100 km away from their last authentication location and moving at more than 10 km/h, a correction of +50 is applied	User Risk Policies
`usrPortal-authenticationRiskPolicy`	Applies to the user portal application. Tolerates a Maximum Acceptable Risk of 100 with a minimum authentication level of 0	Authentication Risk Policies

Tuning the Configuration

After reviewing the report, adjust the configuration XML to move closer to your target outcome. The following levers are available.

Change	Where to tune
Date range, number of requests	Directly in the report form
Available authentication mechanisms strategy	Directly in the report form
Risk rules (add, remove, or modify) to change how the system scores requests	XML configuration → re-run the replay
`riskCorrection` on authentication mechanisms to control which mechanisms are available to users	XML configuration → re-run the replay
`maximumAcceptableRisk` on Authentication Risk policies to change the proportion of users that trigger each mechanism	XML configuration → re-run the replay
Minimum authentication levels on authentication rules to tighten or loosen the minimum strength requirement	XML configuration → re-run the replay

Examples

Observation	Possible cause	Tuning action
A rule never matches (occurrences = 0)	The `matchingCondition` is too restrictive or references data that was not present in the replayed requests	Broaden the `matchingCondition` or verify the rule targets the correct context variable
A rule matches every request	The `matchingCondition` is too broad (e.g. `return true`)	Tighten the condition to target only the relevant subset of requests
Too many users are prompted for strong authentication	`maximumAcceptableRisk` is set too low, or risk corrections are too high	Raise `maximumAcceptableRisk` on the Authentication Risk policy, or increase `riskCorrection` on the targeted mechanism to make it available to more users
Too few users are prompted for strong authentication	`maximumAcceptableRisk` is set too high, or risk corrections are too low	Lower `maximumAcceptableRisk`, or decrease `riskCorrection` on the mechanism to restrict its availability
A mechanism is never offered to users	Its `riskCorrection` value is too low relative to the computed risk scores	Increase the mechanism's `riskCorrection` so it remains available even when risk scores are elevated
A mechanism is offered to all users regardless of risk	Its `riskCorrection` value is too high	Reduce `riskCorrection` to restrict the mechanism to lower-risk requests
Environment risk score is consistently high across all requests	A broad environment rule applies to most requests, or no negative correction rules are configured	Add a rule with a negative `riskCorrection` for known trusted conditions (e.g. recognised device), or reduce the correction on overly broad rules
User risk score is the same for all users	No user risk rules are matching, or all rules have identical corrections	Review `matchingCondition` on user risk rules and ensure they target meaningful behavioural signals (e.g. login time, location)
A policy never matches	Its `matchingCondition` does not match the replayed traffic, or its `evaluationPriority` is too low	Adjust the `matchingCondition` or raise its `evaluationPriority` so it is evaluated before higher-priority policies

Iterating

Once you have reviewed the report, you can edit the configuration directly in the editor and re-run the replay without leaving the page. Adjust the date range and limit to control how many requests the system processes and reduce replay time when needed.
